Pegatron IPMTB-TK (Truckee) Motherboard

By oemadmin on Last Modified: Jun 10, 2025
Pegatron IPMTB-TK (Truckee) Motherboard
🧱 Device
Motherboard
🏗️ Manufacturer
Pegatron
#️⃣ Model No.
IPMTB-TK
CPU/Chipset(s)
Intel X58 Express Chipset
Realtek ALC888S
Intel® WG82567V
CPU Socket
LGA 1366 (Socket B)
RAM (Max.)
24 MB
🛜 Network Technology
1000BASE-T
100BASE-TX
10BASE-T
Interface/port(s)
SATA
- SATA 2.0
- SATA 2.0
- SATA 2.0
- SATA 2.0
PCI Express
- PCI Express 2.0
-- PCI Express x16
-- PCI Express x4
-- PCI Express x1
Port(s)
8P8C modular connector (RJ45)
Firewire IEEE 1394
eSATA
eSATA
USB Type A
- usb 2.0
- usb 2.0
- usb 2.0
- usb 2.0
3.5mm Jack
S/PDIF

The Pegatron IPMTB-TK  was used in many HP Compaq branded computers.

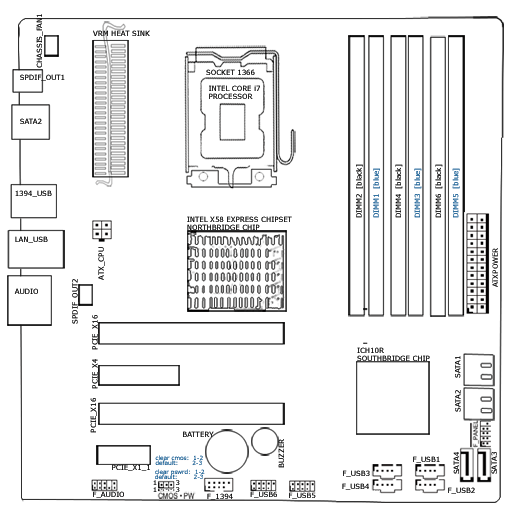

IPMTB-TK (Truckee) motherboard Layout
IPMTB-TK (Truckee) Motherboard Layout
🔊Sound Drivers:
Realtek ALC888 Sound Driver (Windows 11, 10, 8, 7)
🖧Network Drivers:
Intel Network Adapter Driver 25.5 (Windows 10/8/7/Vista/XP)
🏿Chipset Drivers:
Intel Chipset Software 9.1.1.1015 (Windows 7/Vista/XP/2000)
